2. Advanced Docker notions

Duration1h AI Banned

This second practical activity introduces the notions of Dockerfile and Docker compose, two strategies to script the deployment of Docker architecture.

Dockerfile

A Dockerfile is simply a text file containing a sequence of instructions to build a personalized image. Each line of the Dockerfile starts with a command possibly followed with arguments. A Dockerfile is thus a recipe detailing the different layers of your final image. It starts with a FROM command indicating which base layer to start with.

Run in a directory containing a Dockerfile, the following build command creates an image called myimg : docker build -t myimg . Containers can then be started from this image.

Create a Dockerfile respecting the following requirements:

  • start with the official and latest Postgresql image,
  • expose the default 5432 port,
  • set three environment variables
1
2
3

POSTGRES_DB=testdb #to create a database called
POSTGRES_USER=myuser
POSTGRES_PASSWORD=mypassword
  • a database named testdb has to be created on container start. This database should be initialized using the following sql script.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

CREATE TABLE IF NOT EXISTS todos (
  id SERIAL PRIMARY KEY,
  title TEXT NOT NULL,
  done BOOLEAN DEFAULT FALSE,
  created_at TIMESTAMP WITH TIME ZONE DEFAULT now()
);

INSERT INTO todos (title, done) VALUES
  ('Buy milk', false),
  ('Write Dockerfile exercise', true),
  ('Call Mum', false);

The image creation process can be run using the following command:

1

docker build -t my-postgres-image:1.0 .

In case of success, you shall find an image called my-postgres-image in your local Docker registry.

You can test your Dockerfile using the following command that also mounts a volume to the directory where postgresql stores data

1
2
3
4
5
6

# create and run container with named volume 'pgdata'
docker run -d \
  --name my-postgres-container \
  -p 5432:5432 \
  -v pgdata:/var/lib/postgresql/data \
  my-postgres-image:1.0

Using the docker exec command or from the Docker dashboard, open a terminal to test the connexion to the test database using the psql client:

1

psql -h localhost -p 5432 -U myuser -d testdb`

If the connexion is established, execute the following query:

1
2

SELECT  *
FROM todos;

Docker compose

Docker Compose is a tool that lets you define and run multi-container Docker applications using a single configuration file, usually named docker-compose.yml. Instead of starting each container manually with long docker run commands, Docker Compose allows you to describe your entire environment — services, networks, and volumes — in a clear, declarative format. With a single command (docker compose up), Compose builds images if needed, creates containers, connects them together, sets environment variables, maps ports, and manages persistent storage.

In this exercice you will create a Compose file that run two containers, a postgresql server and a web server providing an access to pgadmin.

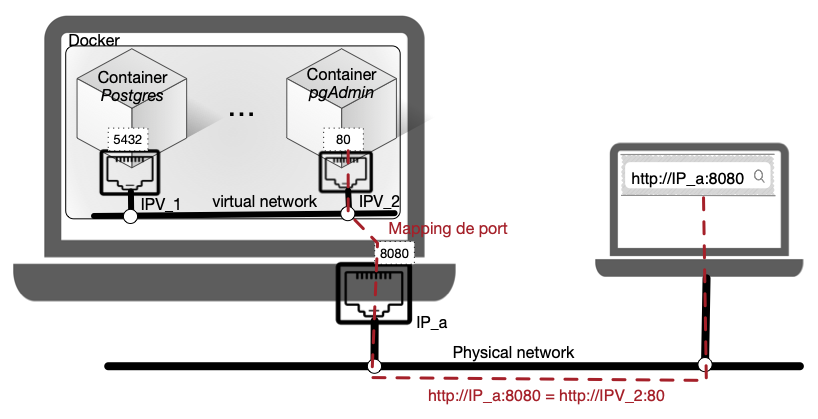

Write a Compose file that makes it possible to deploy the following architecture.

Architecture DB Architecture DB

Here is a list of the requirements:

  • run a postgresql container using the image created during the previous example,
  • run a pgadmin container mapping its port 80 to the port 8080 of the host,
  • the two containers are located in a virtual network called myvirtnet,
  • the data of the postgresql server are stored in a volume named pgdata.

Some good practices

Here are some good practices when using Dockerfiles and Compose:

  • Always use user-defined networks
  • Use service names, never hardcoded IPs
  • Avoid exposing DB ports when not needed
  • Document networks in Compose file
  • Use named volumes for DBs, caches, stateful services
  • Declare volumes explicitly in Compose
